2011 civic backup camera

Home / the12volt's Install Bay / Mobile Video, GPS, and Navigation / 2011 civic backup camera (

Topic Closed)

Welcome Guest :)

Members

< Prev Topic Next Topic >

manahawkinrob

Copper - Posts: 58

Joined: February 18, 2008

Location: New Jersey, United States

Posted: April 22, 2011 at 1:23 PM / IP Logged

I am installing a backup camera in a 2011 Honda Civic and need to tap into the reverse wire. The diagrams all say it is a brown wire in a light green 42 pin connector pin 15 @ the fuse box. Is this the right connector? when I tested the brown wire there it was +12V whether in reverse or not. Anyone connect the reverse wire in this area please let me know where it is.

Thanks,

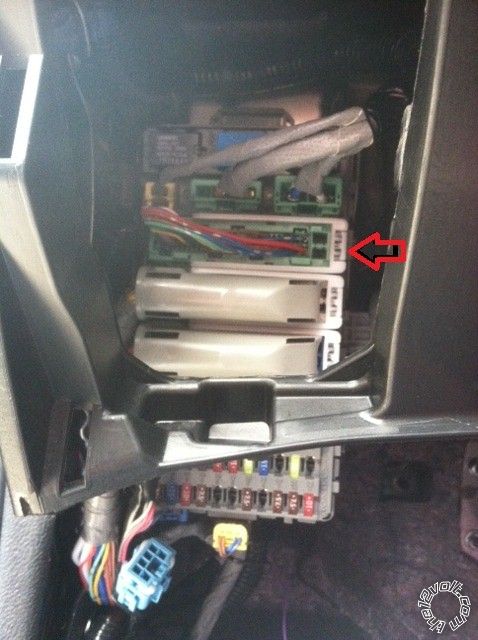

2011 civic backup camera -- posted image.

flobee4

Silver - Posts: 585

Joined: January 02, 2004

Location: United States

Posted: April 22, 2011 at 1:26 PM / IP Logged

Yes that is the correct plug

It could be one of 2 different colors depending if its a 2 door or 4 door.

Brown [4-door], Purple [2-door]

Either way its pin 15 in that 42 pin plug. Pin 15 should be on the top row to the right of a yellow Wire. Test...

Mike M2

Platinum - Posts: 2,652

Joined: June 29, 2005

Location: United States

Posted: April 22, 2011 at 6:46 PM / IP Logged

I find it easier to get in the harness below the hood release on this car...

Mike M2

Tech Manager

CS Dealer Services

manahawkinrob

Copper - Posts: 58

Joined: February 18, 2008

Location: New Jersey, United States

Posted: April 24, 2011 at 3:06 PM / IP Logged

Thanks for the replies, I'll let you know how I make out.

manahawkinrob

Copper - Posts: 58

Joined: February 18, 2008

Location: New Jersey, United States

Posted: April 25, 2011 at 8:45 AM / IP Logged

flobee4 wrote:

Yes that is the correct plug

It could be one of 2 different colors depending if its a 2 door or 4 door.

Brown [4-door], Purple [2-door]

Either way its pin 15 in that 42 pin plug. Pin 15 should be on the top row to the right of a yellow Wire. Test...

Thank you Flobee. This is why I love the12volt.com. It was exactly where you said it was, to the right of a yellow wire on top!!

thanks again!
