2011 Honda Ridgeline RTL, Stereo And Backup Camera Wiring

Home / the12volt's Install Bay / Vehicle Wiring Information & File Requests / 2011 Honda Ridgeline RTL, Stereo And Backup Camera Wiring

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

Fobin

Member - Posts: 27

Joined: May 18, 2002

Location: United States

Posted: September 18, 2024 at 7:45 PM / IP Logged

I am wondering if anyone can point me to two wires I am looking for. I am hoping to find in the factory wiring. I am trying to locate the reverse light wire to activate the backup camera. I am also looking for the radio dimming/illumination. I have searched the web with no luck. I am installing a JVC KW-M150BT. I have it 99% done. Any help will be appreciated!! Thanks, Frank

Back to Top

lee.lopez

Member - Posts: 17

Joined: September 02, 2024

Location: Texas, United States

Posted: September 19, 2024 at 1:49 AM / IP Logged

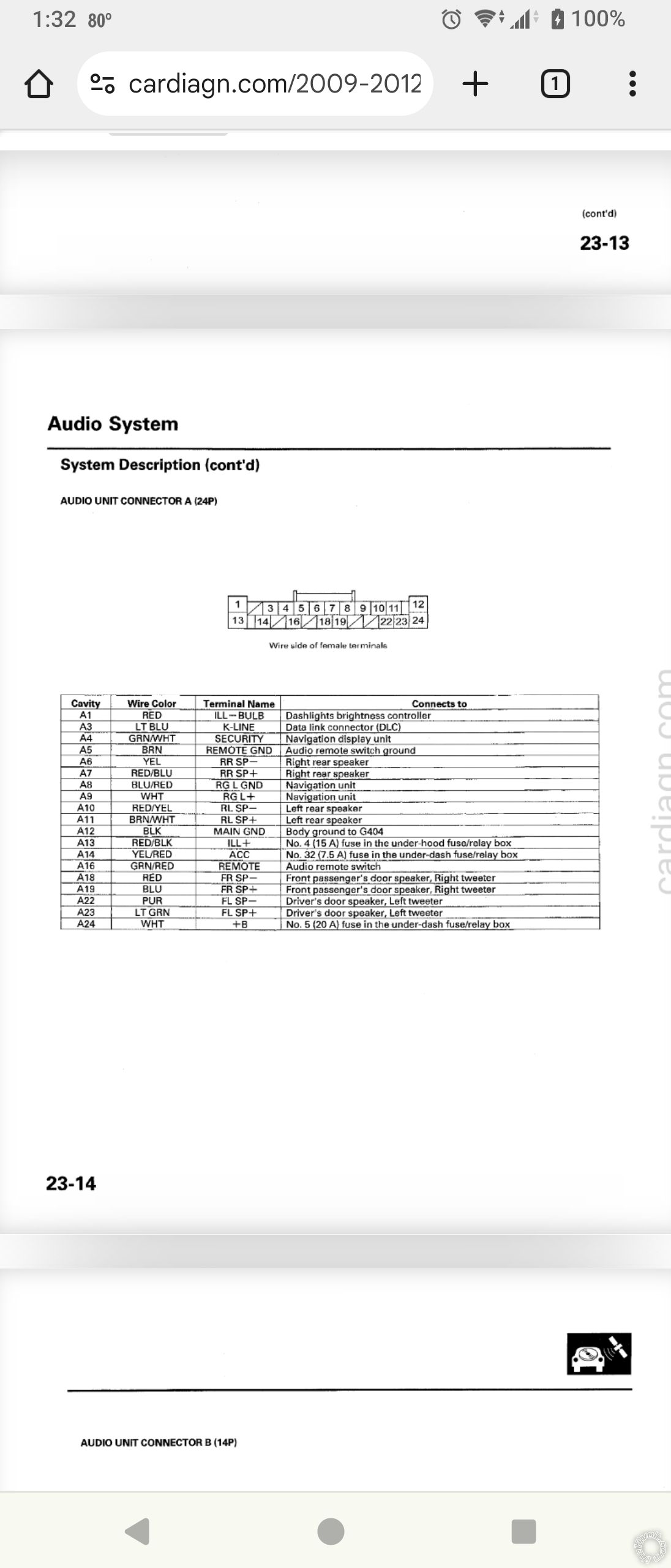

If you're using an adapter harness, illumination will be the orange wire and test positive 12 volts with the parking lights. This wire is listed in the factory harness as the red/black wire in A13. The dimmer wire is listed as red in A1.

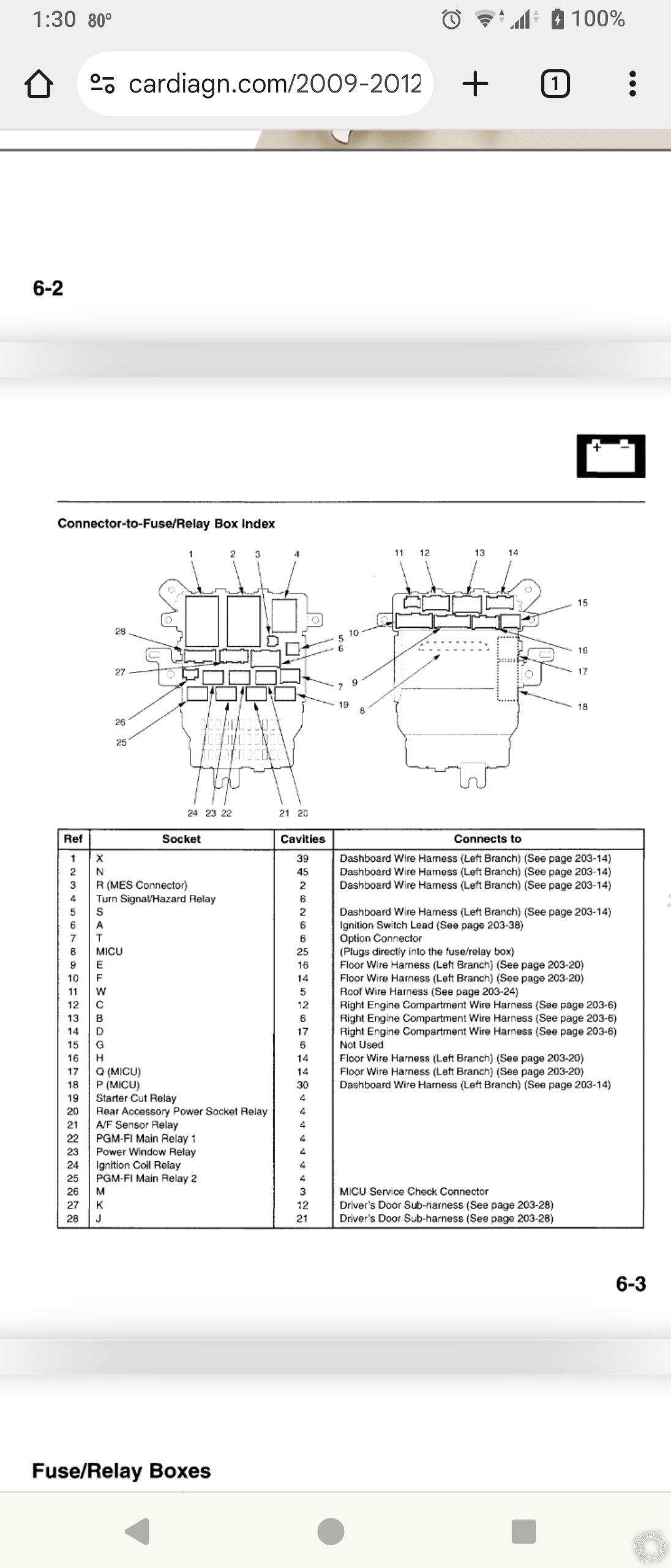

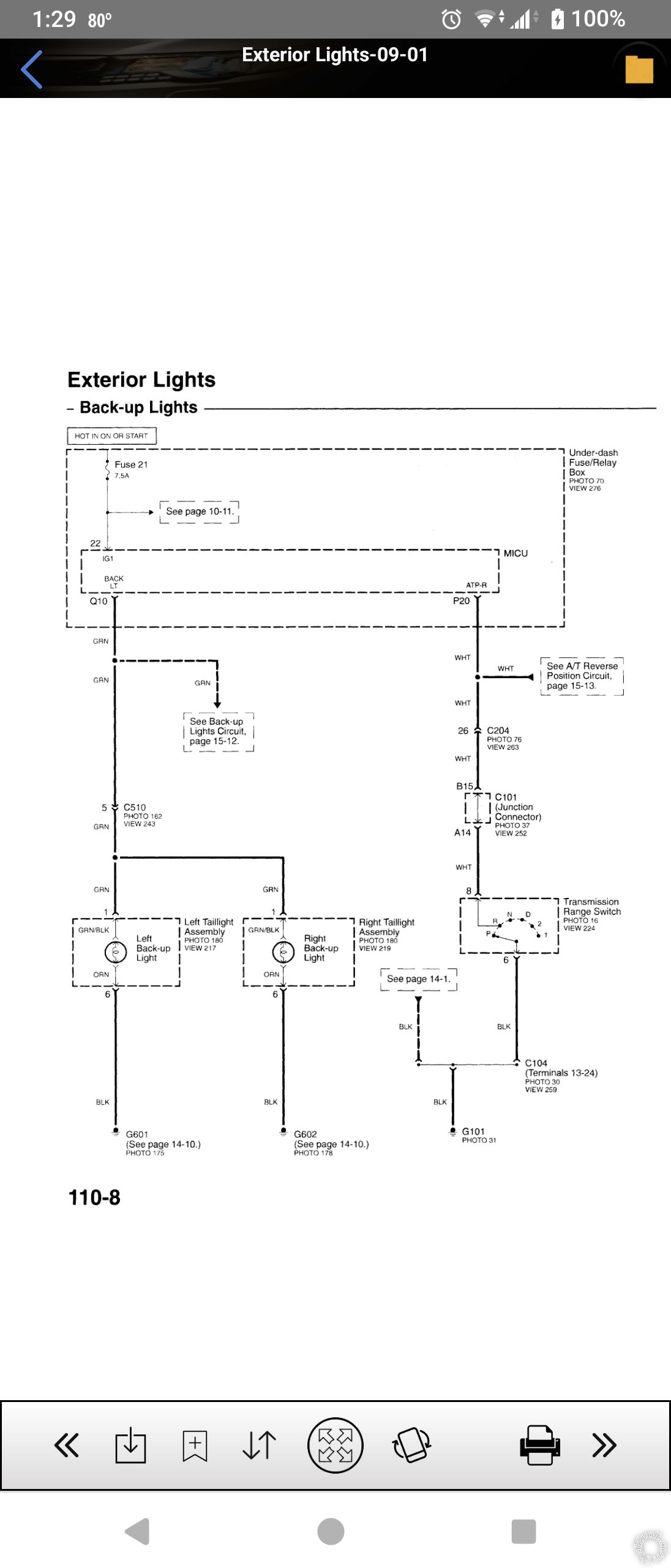

Reverse is listed as a green wire at the interior fuse box Q10 (14 pin connector Q, pin 10) 2011 Honda Ridgeline RTL, Stereo And Backup Camera Wiring - Last Post -- posted image.

2011 Honda Ridgeline RTL, Stereo And Backup Camera Wiring - Last Post -- posted image.

Back to Top

Fobin

Member - Posts: 27

Joined: May 18, 2002

Location: United States

Posted: September 19, 2024 at 5:24 PM / IP Logged

Thank you for the info!!
