i am an idiot

Platinum - Posts: 13,692

This member consistently provides reliable information

Joined: September 21, 2006

Location: Louisiana, United States

Posted: March 01, 2012 at 3:43 AM / IP Logged

rockford fosgate punch 150 hd - Page 2 -- posted image.

This picture along with the Original post, and my first response to his post should help.

toby82

Member - Posts: 11

Joined: February 29, 2012

Location: Wyoming, United States

Posted: March 01, 2012 at 8:20 AM / IP Logged

i am an idiot wrote:

Do you have an ohm meter?

No I don't have one. I knew I shoulda bought that multi-meter when I had the chance. If a multi-meter can help me in my situation I may be able to buy one after work, they don't cost too much.

toby82

Member - Posts: 11

Joined: February 29, 2012

Location: Wyoming, United States

Posted: March 01, 2012 at 9:01 AM / IP Logged

The picture didn't show up. All I see is a blue box. So I re-read the first reply and I think I got it figured out. From top to bottom left to right the colors should be

Red Black Brown

Orange Yellow

except on my plug the slot directly under red is not blank. am i not gonna use this wire regardless?

i am an idiot

Platinum - Posts: 13,692

Joined: September 21, 2006

Location: Louisiana, United States

Posted: March 01, 2012 at 12:18 PM / IP Logged

Give me a minute, I am at work and going to see if I can find one on the shelf somewhere. But your layout appears to be correct.

the12volt

Administrator - Posts: 3,955

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 07, 2002

Location: Louisiana, United States

Posted: March 01, 2012 at 3:11 PM / IP Logged

Image fixed.

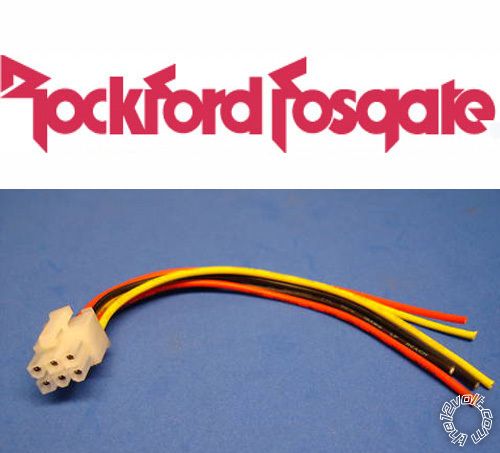

rockford fosgate punch 150 hd - Page 2 -- posted image.

the12volt • Support the12volt.com

toby82

Member - Posts: 11

Joined: February 29, 2012

Location: Wyoming, United States

Posted: March 01, 2012 at 4:20 PM / IP Logged

Awesome! I saw the picture and that's the exact plug that I ordered but like I said, the colors don't match so I'm gonna hook the amp up according to what I stated earlier and see what happens. If for any reason my layout is wrong what's the worst that can happen?

i am an idiot

Platinum - Posts: 13,692

Joined: September 21, 2006

Location: Louisiana, United States

Posted: March 01, 2012 at 10:26 PM / IP Logged

Use an ohm meter and the black and yellow wire should be electrically connected inside the amp. I know that the black wire is a negative and the yellow is a positive, but those 2 wires are shorted together.

toby82

Member - Posts: 11

Joined: February 29, 2012

Location: Wyoming, United States

Posted: March 02, 2012 at 7:16 AM / IP Logged

Yea but there's 2 of each color.

toby82

Member - Posts: 11

Joined: February 29, 2012

Location: Wyoming, United States

Posted: March 02, 2012 at 7:24 AM / IP Logged

N/M my last post. I just realized what you were talking about. Damn its too early! LOL

toby82

Member - Posts: 11

Joined: February 29, 2012

Location: Wyoming, United States

Posted: March 02, 2012 at 1:20 PM / IP Logged

Mr. Idiot lol, do you have access to an actual stock or exact replica of the 6 pin plug so I can be certain I'm hooking the wires up in the correct configuration. If not then oh well, it was worth a shot.
