2004 Toyota Sienna, All Doors Open Wiring?


Post ReplyPost New Topic
< Prev Topic Next Topic >
mrteausa
Member - Posts: 4
Member spacespace
Joined: October 17, 2024
Location: Kansas, United States
Posted: October 19, 2024 at 9:18 PM / IP Logged Link to Post Post Reply Quote mrteausa
I am installing the alarm for the Sienna 2004 van. Do any one know which wires are for all doors open/ajar on the underneath front driver side.   I know that when any doors open there is light on the dashboard show light with lcon of any doors open. Where is this wire located? I am not wanting to connect to all 5 doors on this van for detecting door opening to trigger the alarm. Any idea to do this all doors trigger wiring?
mrteausa
lee.lopez
Copper - Posts: 62
Copper spacespace
Joined: September 02, 2024
Location: Texas, United States
Posted: October 20, 2024 at 2:58 AM / IP Logged Link to Post Post Reply Quote lee.lopez
Check the blue wire at the interior light switch.
mrteausa
Member - Posts: 4
Member spacespace
Joined: October 17, 2024
Location: Kansas, United States
Posted: October 20, 2024 at 10:04 PM / IP Logged Link to Post Post Reply Quote mrteausa
Is the interior light switch has on/off for the all inside lights. What is the blue wire do? Negative trigger or Positive trigger? DO I need to put diode on it? I check it but only works with light switch on when off it does not work..
mrteausa
lee.lopez
Copper - Posts: 62
Copper spacespace
Joined: September 02, 2024
Location: Texas, United States
Posted: October 21, 2024 at 5:55 AM / IP Logged Link to Post Post Reply Quote lee.lopez

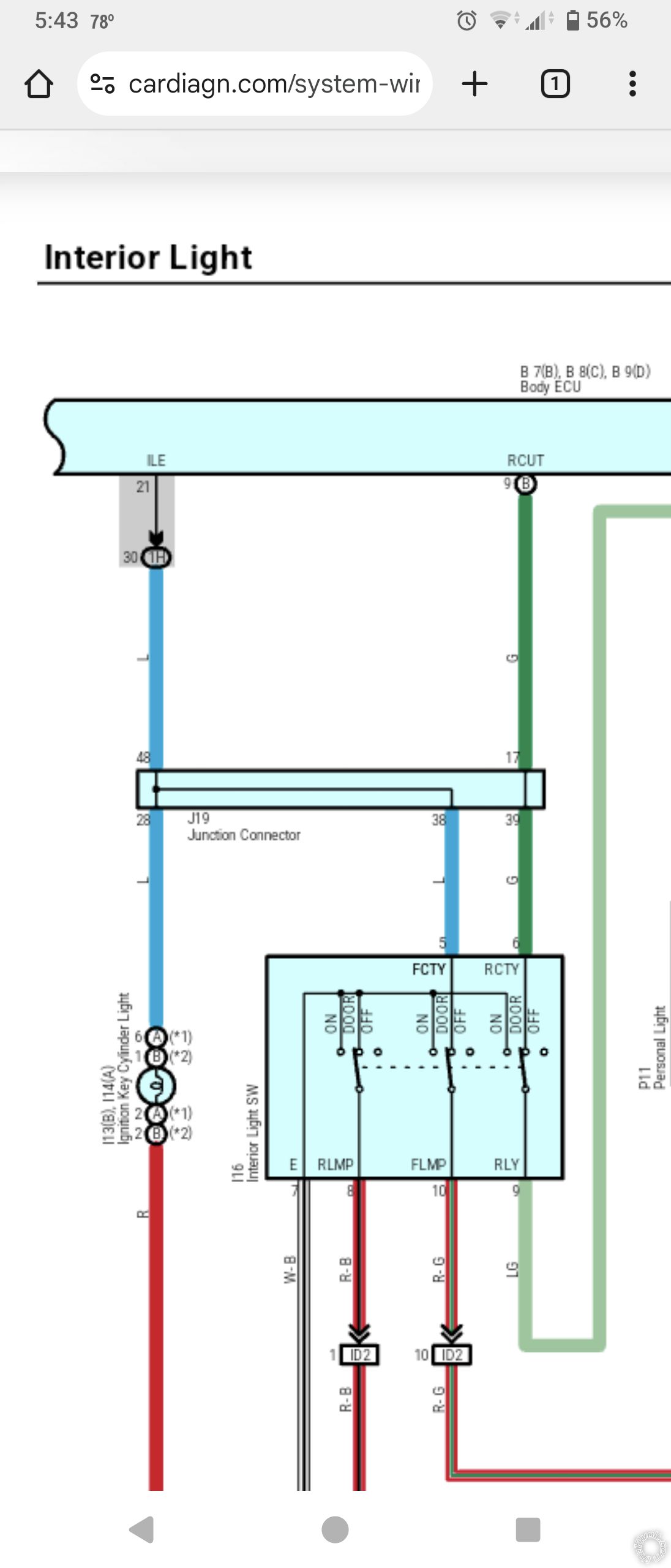

This is the switch on the dash. I see it listed as negative trigger. A diode shouldn't be necessary: https://jdmfsm.info/Auto/--General--/Autoelectric%20schemas/Alarm%20cables/index2be3.html?MakeID=2&ModelID=18040

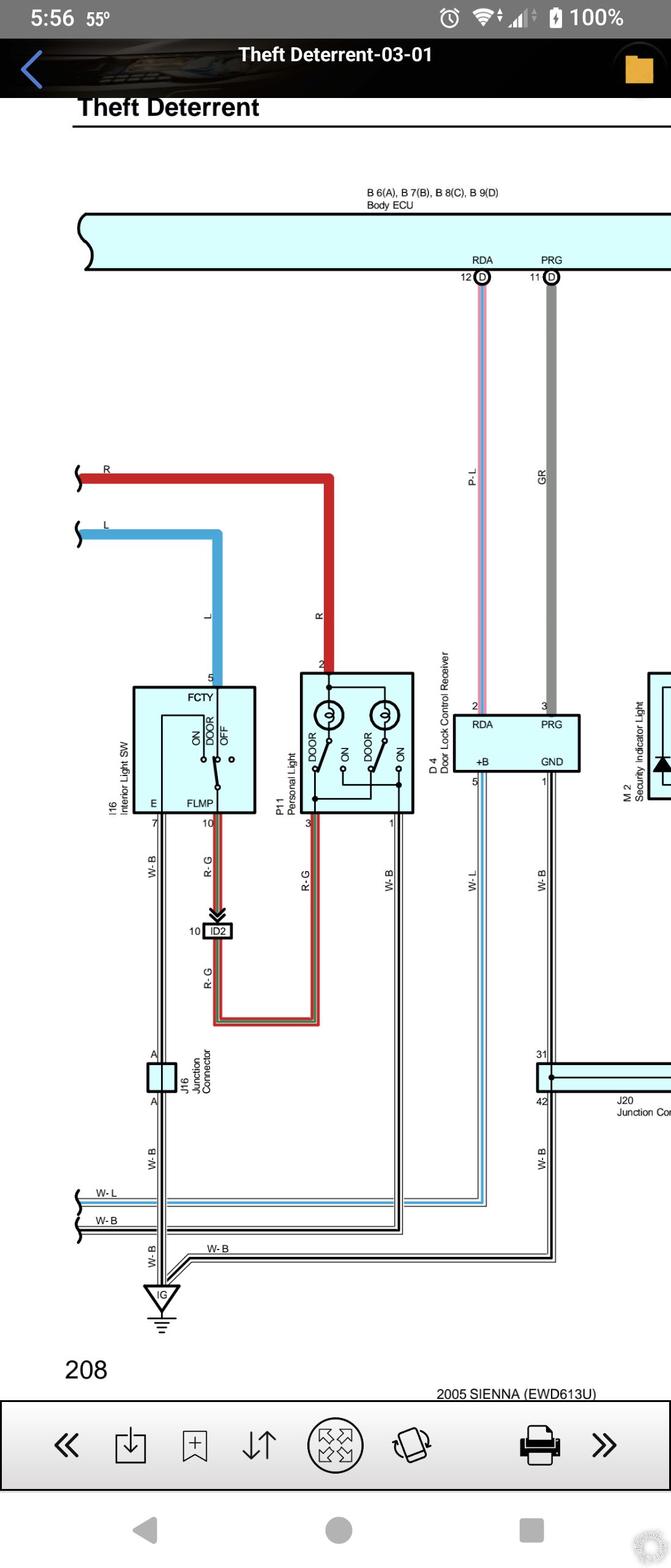

2004 Toyota Sienna, All Doors Open Wiring? -- posted image.
Since the white/black ground wire is only used in the on position, we can deduce the blue wire is a negative door trigger.
