relay question

Home / the12volt's Install Bay / Relays / relay question (

Topic Closed)

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

n8eight

Member - Posts: 2

Joined: June 24, 2005

Location: United States

Posted: June 24, 2005 at 2:34 PM / IP Logged

I am woring on a misting system that is hooked to a 12 volt irrigation timer. The timer only outputs a single charge for on and off times. Can you use a single charge to open a relay and then another single charge to close a relay. This way the current is flowing during the entire time and my 12volt pump will run the whole time. I would use a second 12volt battery to run the pump.

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: June 25, 2005 at 7:57 PM / IP Logged

Yes but I need more details.

Are you trying to turn one relay on and off?

Are you trying to turn a relay on and a second one on or off?

Why do you need a Timer if you want the pump running all the time?

I can help you but I need to understand exactly what you want to do.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

Search for other posts by hotwaterwizard

n8eight

Member - Posts: 2

Joined: June 24, 2005

Location: United States

Posted: June 26, 2005 at 6:14 AM / IP Logged

Since I am keeping this all on 12 volt or less the timer I am using sends a single pulse of electricity. The timer is for a irrigation solenoid and valve. One charge to open the solenoid and one more to close the solenoid. Well, I want to use a water pump to drive my misting system, but it needs to run continuously through the cycle of the timer. Since this timer does not do that. I was wondering how i can keep the juice flowing to the pump.

www.daynicontrols.com/ for the timer

http://www.oberread.com/aquatec.htm the 12volt booster pump

I want to be able to set a schedule for my misting system and not have to worry about turning the system on or off during the day.

If this is still not enough info i can send you a diagram as well.

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: July 19, 2005 at 11:29 PM / IP Logged

A diagram would help. So does this timer have a positive and negitive that switches polarity for up and down?

Are you sure that you are seting the timing cycle right?

This looks like a good timer.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

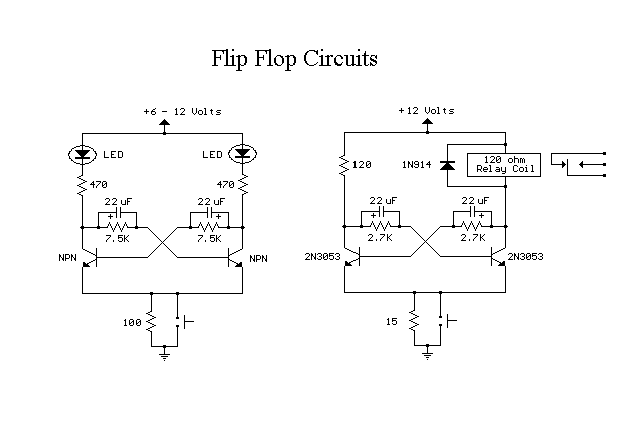

Posted: July 19, 2005 at 11:32 PM / IP Logged

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top
